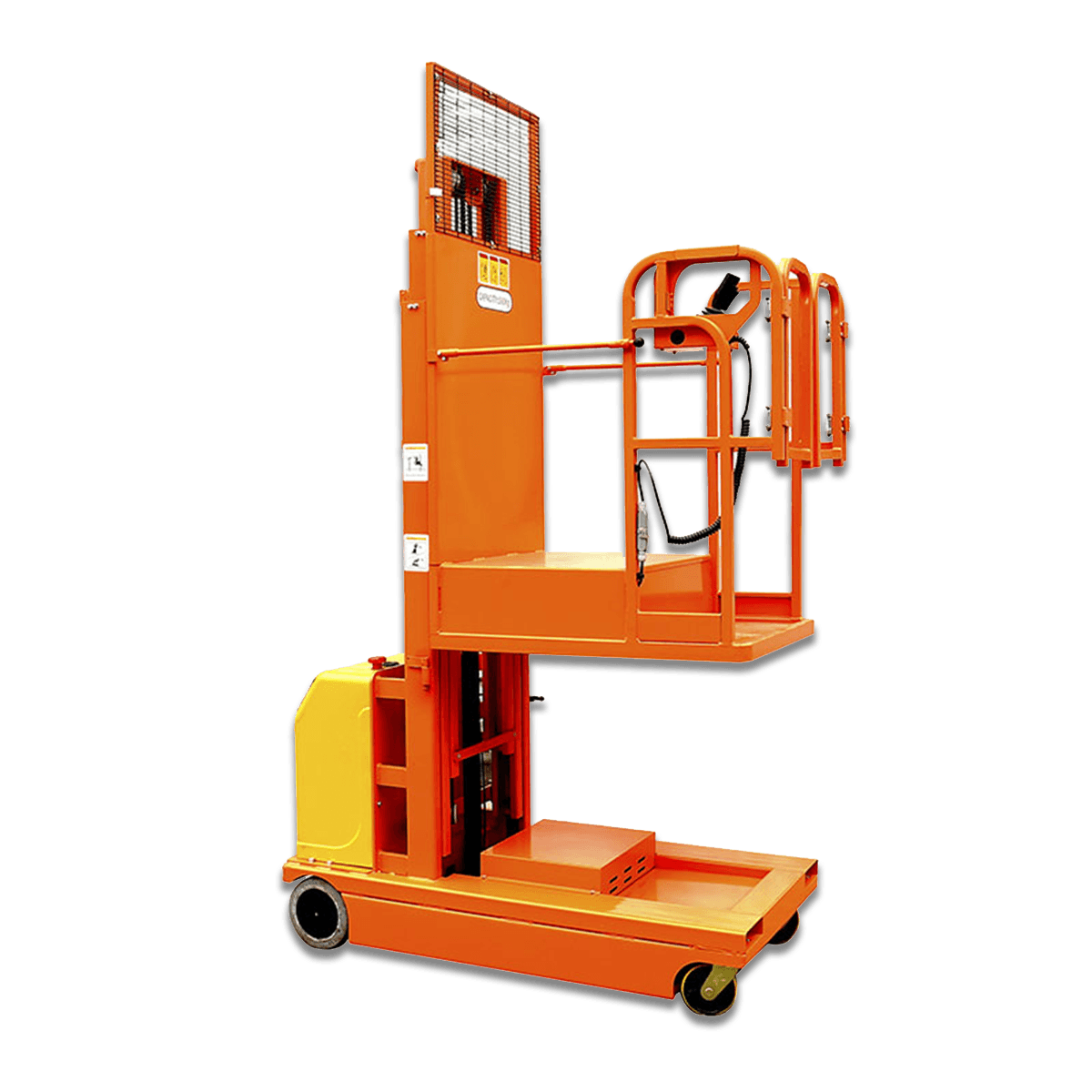

简体中文Whole-electricomotion aerical order picker
Main specifications
● Working height: 2.70m, 3.30m, 4.0m and 4.50m
● Safety load: 300kg
Important features
● Large cargo platform, wide applicability
● Tilt protection system, high safety
● Standard forklift holes for easy transportation
● 0 degree turning radius, flexible operation
● Working height: 2.70m, 3.30m, 4.0m and 4.50m
● Safety load: 300kg
Important features
● Large cargo platform, wide applicability
● Tilt protection system, high safety
● Standard forklift holes for easy transportation
● 0 degree turning radius, flexible operation
|
Model Number |
FSEP3-2.7 |
FSEP3-3.3 |
PSEP3-4.0 |
FSEP3-4.5 |
|
| Platform height (H) |
mm |
2700 |
3300 |
4000 |
4500 |
| Machine height (H1) |
mm |
4020 |
4900 |
5310 |
6000 |
| Distance from the base to the ground (H2) |
mm |
40 |
40 |
40 |
40 |
| Platform load rating |
kg |
300 |
300 |
300 |
300 |
| Work platform size (1xn) |
mm |
600X700 |
600X700 |
600X700 |
600X700 |
| Maximum driving speed (platform lowered) |
km/h |
4 |
4 |
4 |
4 |
| Maximum driving speed (platform raised) |
km/h |
1.6 |
1.6 |
1.6 |
1.6 |
| Minimum turning diameter |
mm |
1600 |
1600 |
1600 |
1600 |
| Maximum climbing ability |
% |
15-20 |
15-20 |
15-20 |
15-20 |
| Drive wheel size |
mm |
φ230X80 |
φ230X80 |
φ230X80 |
φ230X80 |
| Universal wheel size |
in |
6 |
6 |
6 |
6 |
| motor |
v/kw |
2X24/0.4 |
2X24/0.4 |
2X24/0.4 |
2X24/0.4 |
| Lifting motor |
v/kw |
2x12/1.6 |
2x12/1.6 |
2x12/1.6 |
2x12/1.6 |
| Maintenance-free battery |
v/Aw |
2X12/100 |
2X12/100 |
2X12/100 |
2X12/100 |
| charger |
v/A |
24/15 |
24/15 |
24/15 |
24/15 |
| Overall length (A) |
mm |
1530 |
1530 |
1620 |
1620 |
| Overall width (B) |
mm |
760 |
760 |
760 |
760 |
| Overall height (C) |
mm |
1830 |
2130 |
1840 |
2000 |
| Total Weight |
kg |
430 |
450 |
660 |
680 |
