Hand Stacker

Hand Stacker

SDA

Option with adjustablewide legsADVANTAGES
Technical Features: Two-speed pump option: greatly improve work efficiency.
The descending speed is adjustable.
Double-gantry stacker: limited free lifting.
Easy maintenance: Maintenance-free design, safe and worry-free use.
The position of the filler nozzle is optimized, and the refueling is accurate, avoiding oil leakage and facilitating maintenance.
Easy to operate: High pumping efficiency, lighter and more comfortable operation.
Regardless of the size and weight of the load, the lifting and lowering are always stable and consistent, with no impact and very safe to use.
Lifting work can be done by hand or by foot.
Manual control valve, precise and convenient control.

1.High quality mast steel ensures rigidity, durability.
2.Integral pump,which prevents loosening, leak-proof.
3.High efficiency pump, operating lighter, more comfortable.
4.Lifting speed keeps smooth regardless of loading weight,which is safe to use.
5.The stacker can be lifted by handle or foot pedal.
6.Hand control valve precises control convenience.
7.Set the active safety valve to prevent overloading of use.
8.Maintenance-free design, ensures security, reduces service cost.

SDA adopts high-strength C-type steel door frame to ensure no deformation of heavy loads. The cylinder has a manual safety drop safety valve to enhance safety performance. The double chain design improves durability and makes the cargo rise and fall more smoothly
• Capacity:1000kg / 1500kg / 2000kg
• Option:1600 / 2000 / 2500 / 3000 mm

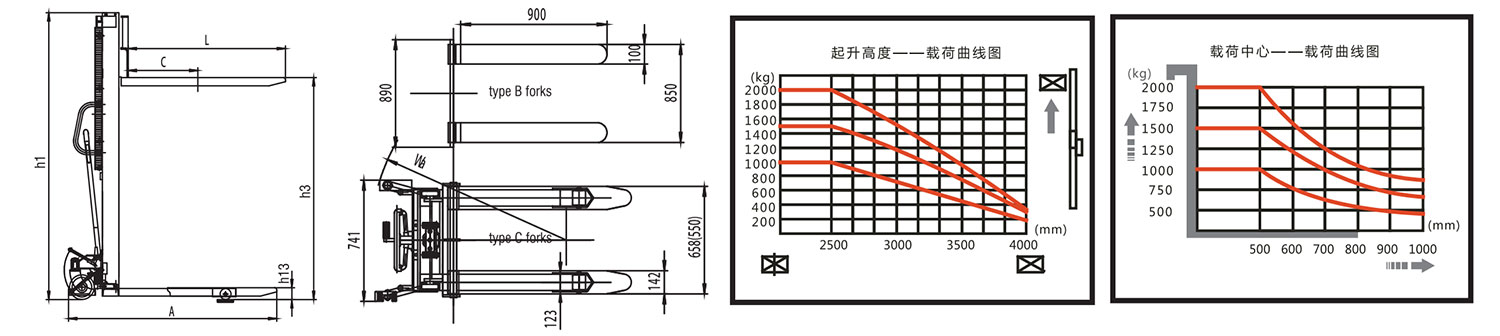

Model

SDA1016(S)

SDA1025(S)

SDA1030(S)

SDA1516(S)

SDA1525(S)

SDA1S30(S)

SDA2016(S)

Load capacity

Q(kg)

1000

1000

1000

1500

1500

1500

2000

Load center

C(mm)

500

500

500

500

500

500

500

Service weight

kg

250

290

316

270

310

336

290

Lowered mast height

h1(mm)

2086

1836

2086

2086

1836

2086

2086

Lifting height

h3(mm)

1600

2500

3000

1600

2500

3000

1600

Overall height

h4(mm)

2086

3000

3500

2086

3000

3500

2086

Fork lowered height

hl3(mm)

90

90

90

90

90

90

90

Overall length

l1(kg)

1360

1360

1360

1360

1360

1360

1360

Overall width

bl(kg)

765

765

765

765

765

765

765

Fork dimensions

s/e/l(mm)

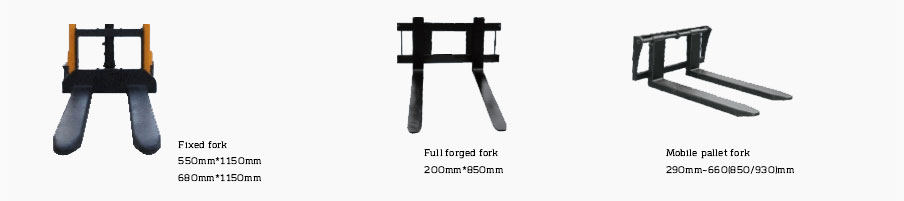

Forged fork 30x100x1070, fixed plate type 60x142x1070, mobile plate type 60x142x1070

Distance between fork-arms

b5

550/660

550/660

550/660

550/660

550/660

550/660

550/660

Ground clearance

ml

25

25

25

25

25

25

25

Turning radius

Wa(mm)

1200

1200

1200

1200

1200

1200

1200

Lifting speed with/without load

mm/stroke

9.5/10.5

9.5/10.5

9.5/10.5

9.5/10.5

9.5/10.5

9.5/10.5

9.5/10.5

Falling speed with/without load

mm/s

manual control
