Semi-electric Stacker

Semi-electric Stacker

BDA/BDA-S

ADVANTAGES

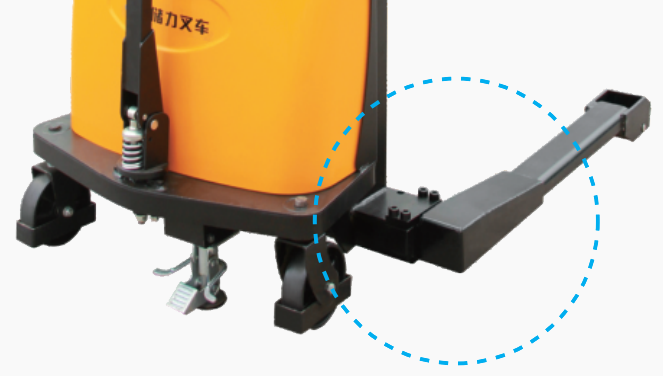

Lever Type Assisted Steering Device: Effectively reduce labor intensity, and the service life is 3 times longer than that of ordinary chains.
Low center of gravity design: The low center of gravity makes the vehicle more stable and reliable during use.
Explosion-proof valve: The oil cylinder is equipped with an explosion-proof valve to ensure that the oil pipe will not slide down quickly when it is accidentally damaged, so as to ensure the safety of the user.

1.Strong mast material ensure high capacity.
2.Explosion-proof valve in the pump, to avoidrapid decline to ensure the operator's safety.
3.Over-discharge protection device greatlyextends battery life.
4.Foot brake is simple and easy to maintain.
BDA is a semi-electric stowage truck, which adopts lever auxiliary steering device to effectively reduce labor intensity and increase service life
• Capacity:1000kg / 1500kg / 2000kg
• Option:1600 / 2000 / 2500 / 3000 / 3500 / 4000 mm
Low center of gravity design, make the vehicle more stable and reliable in the use process, the oil cylinder with explosion-proof valve, to ensure that the oil pipe in the accidental failure of the rapid slide phenomenon, to ensure the safety of users

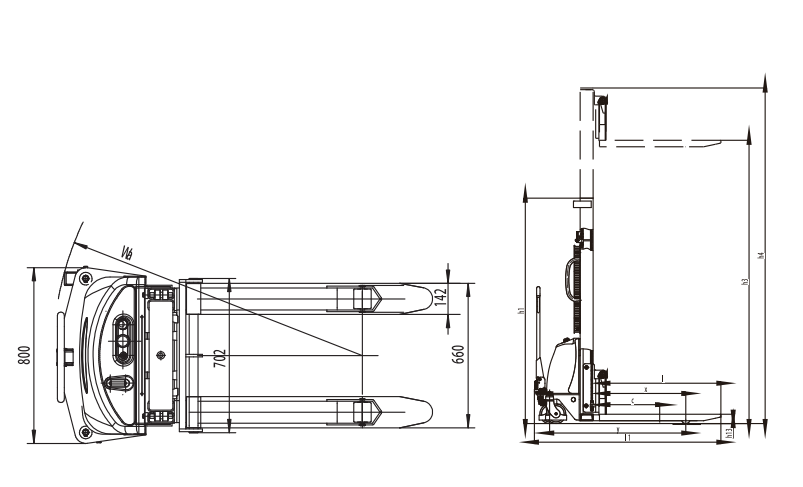

Model
BDA
Load capacity

Q(kg) 1000 1500 2000
Load center C(mm) 500
Net weight kg 380 450 480
Wheel nylon/PU
Tyre size, front mm Φ180x50
Tyre size, rear mm Φ80x70
Wheel, quantity mm 2/2
Lowered mast height h1(mm) 2086/1586/1836/2086/2236/2336/2586
Lifting height h3(mm) 1600/2000/2500/3000/3300/3500/4000
Overall height h4(mm) 2086/2550/3050/3550/3850/4050/4550
Lowered Fork Height h13(mm) 90
Overall length /1(mm) 1505
Overall width b1(mm) 750
Ground clearance

m2(mm)
25
Min turning radius Wa(mm) 1415
Lifting speed with/without load m/s 135/150
Falling speed with/without load m/s hand control
voltage/rated capacity

V/Ah 12/110 12/110 12/110
Battery size mm
365x270x175
