EPS STEERING ELECTRIC PALLET TRUCK

EPS STEERING ELECTRIC PALLET TRUCK

QBA A s

ADVANTAGES
1.High performance AC drive unitensures high efficiency and lowmaintenance,prolongs servicelife
2.EPS system makes the vehiclesteering flexible and convenient
1.Reverse switch on handle,vertical and horizontal position stop makes more safety in operation

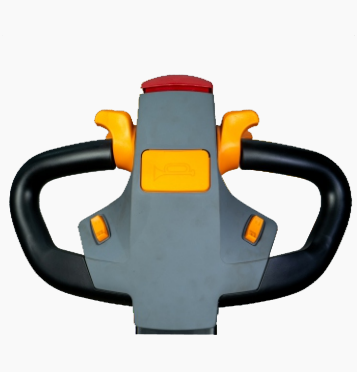

2.Ergonomic tiller with forward/rearward,horn,lift
up/dowm,makes more comfortable operation

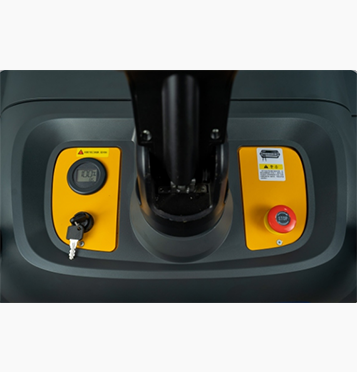

1.Emeygency switch,key-switch and batterydischarge indicator
2.High battery capacity provides long
3.Foldable pedal and protective arms makes theoperation safer
1.Ergonomic and reliable design
2.CAN-BUS Technology
3.Auto-slow down for steering
4.Robust and reliable chassis
5.Safety Configuration
6.High battery capacity
7.Robust battery cover



high performance
High quality hydraulic station. Low noise, low vibration, strong sealing, automatic adjustment of the falling speed. Ensure the lifting and lowering speed is stable and reliable: precise electronic limit switch, accurately control the maximum lifting height and prevent damage to the motor.
Safer and more convenient operation
Emergency reverse driving function;
Emergency power off switch as standard;
The ergonomically designed control handle imported from Germany can be operated by left and right hands. All operation functions can be easily realized by simple buttons on the handle, which improves driving comfort.
With electronic steering system, the operation is easier. Steering is more flexible.

1.CAN-Bus technology reduces maintenanceand increase overall performance
2.Low battery protection prolongs the usable lifeof battery
3.Automatic deceleration makes vehicleoperation more safe when turning
4.Low center of gravity ensures vehicleoperation more stable
5.Vertical drive provides smaller turning rediusand convenient maintenance
6.AC Motor reduces replacement of Carbonbrush
7.Multi-functional battery indicator
8.Reliable hydraulic system increases workefficiency and saves maintenance cost

The new generation of heavy-duty electric hauler adopts AC drive control technology, standard electric power steering system (EPS), excellent speed performance, good climbing performance, low heat, no carbon brush, no maintenance,CURTIS/ZAPI AC control system, accurate and stable control, higher efficiency, different fork and fork length optional, can be suitable for a variety of pallet handling.
• 2000-3500kg capacity
• Option:Lithium battery 24V/150Ah
The station driving pedal adopts shock absorbing design, which greatly improves the station riding comfort and reduces the fatigue of long time driving

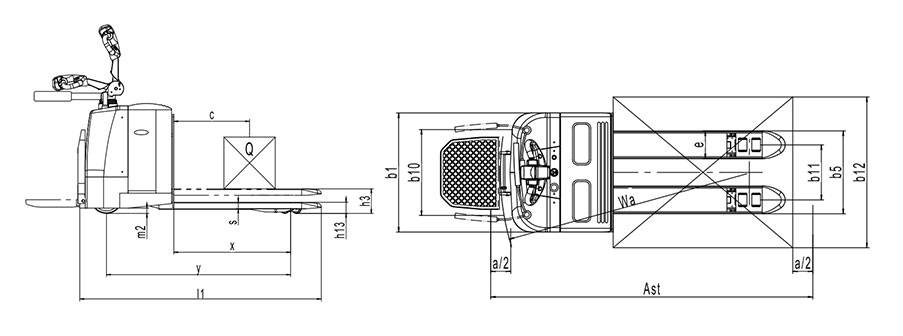

                        Model

QBA H

Load capacity

Q(kg)

2000/2500/3000

Load center

c(mm)

600

Weight with battery

kg

800/870/900

Wheel size, front

mm

Φ270x75

Wheel size, rear

mm

Φ80x80

Additional wheel

mm

Φ115x50

Wheel numbers(x=drive wheel)



1x+2/4

Thread, front

b10(mm)

560

Thread, rear

b11(mm)

385/500

Max. lifting height

h3(mm)

120

Collapsed height

h13(mm)

80-85

Overall length

/1(mm)

1900

Overall width

b1(mm)

790

Fork dimensions

S/e/l(mm)

60/185/1150

Width over forks

bs(mm)

550/685

Ground clearance, center of wheelbase

m2(mm)

40

Turning radius

Wa(mm)

1720

Travel speed, laden/unladen

Km/h

6/6

Max. G radient performance, laden/unladen

%

8/10

Service brake

Electromagnetic-regenerative braking

Drive motor power

kW

1.5

Lifting motor power

kW

2.2

Battery voltage / nominal capacity

V/Ah

24V/(210/270/270)AH

Battery weight

Kg

190/260

Battery size (L x W x H)

mm

790x212x630

Steering

Electronic steering
