PEDESTRIANISM ELECTRIC PALLET TRUCK

PEDESTRIANISM ELECTRIC PALLET TRUCK

QBA25J

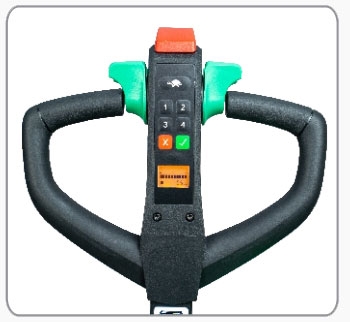

Multi-functional Tiller
Emergency reversing
Pin-code access
Built-in charger

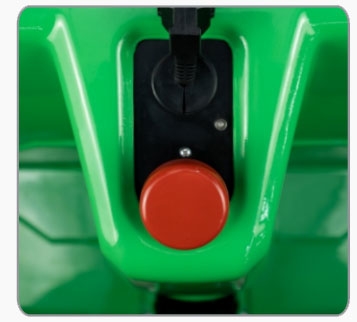

Emergency button
Lithium battery pack


1. The structural layout of the new concept, two innovative designs, independent
Electric warehouse, independent hydraulic warehouse, set a new benchmark for medium-sized vehicles;
2. The fork is integrally formed, and the fork frame has high strength;
3. Stepless control of the driving speed to meet the rhythm of different drivers;
4. The beauty of the outside depends on its shape, and the beauty of the inside is the best.
5.Low center of gravity ensures vehicle operation more stable
6.Vertical drive provides smaller turning redius and convenient maintenance
7.AC Motor reduces replacement of Carbon brush
8.Multi-functional battery indicator
9.Reliable hydraulic system increases work efficiency and saves maintenance cost
10.Automatic deceleration makes vehicle operation more safe when turning
11.Low battery protection prolongs the usable life of battery

J series lithium electric pallet car is a new generation of newly developed products, using AC drive control technology, advanced performance, comfortable operation, safe and reliable, low maintenance cost, is the warehouse, supermarket, workshop loading and unloading and handling of pallet goods ideal tools.

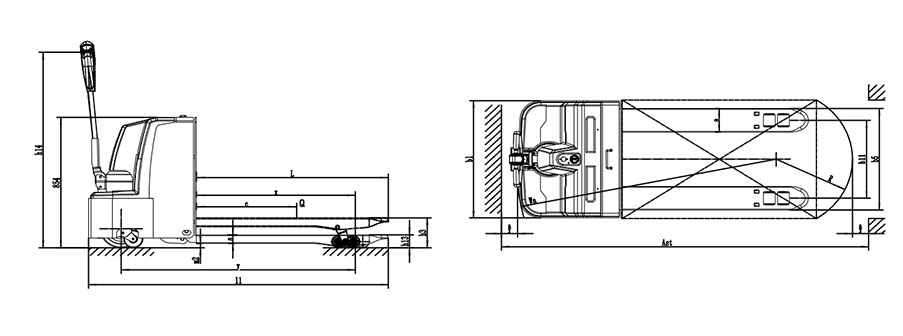

                              MODEL

QBA25J

Drive

Electric

Operator type

Pedestrianism

Load capacity/rated load

Q(kg)



2500



Load centre distance

C ( mm )

600

Wheelbase

y ( mm )

1354

Service weight(with battery)

kg

380

Tyres

Polyurethane Wheel/PU

Wheel Size,Front Wheel

s/e/l ( mm )

160

Wheel Size,Rear Wheel

Φxw ( mm )

Φ80x70

Lift height

h3 (mm)

195

Lowered fork height

h13 ( mm)

85

Overall Length

11 ( mm)

1725

Overall Width

b1 ( mm)

790

Fork dimensions

s/e/l ( mm )

160

Width over forks

b5 ( mm)

550/685

Ground clearance

m2 (mm)

26

Aisle width,with 800*1200 pallet

Ast ( mm )

2208

Turning radius

Wa(mm)

1538

Travel speed,laden/unladen

km/h

4/4.5

Lift speed,laden/unladen

mm/s



Max gradient performance,laden/unladen

%

6/10

Braking

Electromagnetism(EyM)

Drive motor

KW

0.85

Lift motor

KW

0.85

Lithium Battery voltage/nominal capacity

V/Ah

48/40

Noise level,according to DIN12053

dB( A)

<70
