MINI LITHIUM ELECTRIC PALLET TRUCK

QBM-15II

1.Ergonomic handle,more stronger and durable.

2.The turtle button makes vehiclle be moved whlile handle is invertical poslition.whitch helps to easlily operate lin narrow aisle,especiaily lin elevator or VAN truck.

3.Multi-functlion Handlle.Forward/reverse butterfly switch.Power lindicator.horn,Turtle button.

4.QBM: Electric lifting BBM=Manual lifting

5.Modullarization deslign of main parts,provides perfectperformance and convenllent maintenance.

6.Manual stepless lowering handlle,ensures safe unload.

7.The preclision structure design provised a quick and conwenient service lin maintenance.

8.Hydraulic system well protected,and reduce unnecessarytrouble during operalion.

9.Emergency stop button simple and converient operation.

10.Lithium baftery with long service life and qulick replacement.improve work efficliency.

11.Standard Lithium battery mailintenance-free quick charging andmore safety.Built-BMS protection system for shortcircuit.overiload and overcurrent.

The pioneering design of the mini lithium electric carrier, beautiful appearance, compact structure, efficient and labor-saving, multi-functional handle makes the operation more convenient. Fast charging and battery replacement greatly improve the work efficiency, turtle speed button can walk upright and small turning radius to meet the needs of narrow channels.

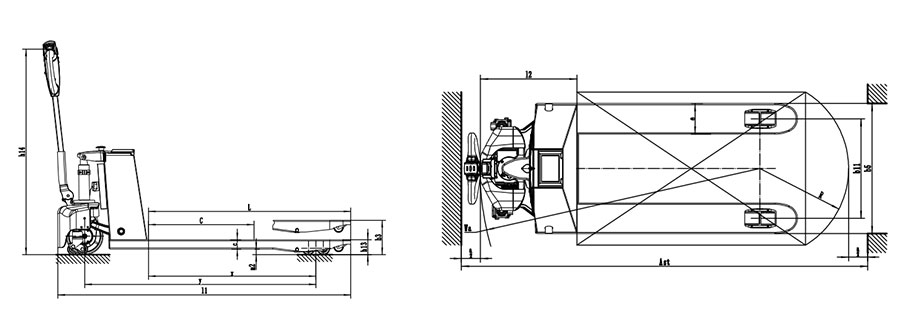

Model	QBM1502
Load capacity	Q(kg)	2500
Load center	C ( mm )	600
Weight with battery	kg	130
Drive wheel	Φxw ( mm )	Φ210x70
Load wheel	Φxw ( mm )	Φ80x70 ( Φ74x70 ) Φ80x93 ( Φ74x93 )
Max.lifting height	h3 ( mm )	190
Height of tiller	h14 ( mm )	1185
Lowered height of forks	h13 ( mm )	85 ( 75 )
Overall length	l1 ( mm)	1665
	l2 ( mm)	507
Fork dimension	s/e/l ( mm )	54X160X1150
Overall Width	b5 ( mm)	550/680
Ground clearance	m2 ( mm)	32
Turning radius	Wa ( mm)	1470
Travel speed,leden/unladen	km/h	4/4
Max.gradient,laden/unladen	%	5/15
Braking	Electromagnetic brake(E/M)
Drive motor	w	750
Lift motor	w	800
Battery voltage/capacity	V/Ah	Lithium/24V/20Ah
Noise lever	dB/ (A)	<70
