Counter Balance Stacker

Counter Balance Stacker

CPD

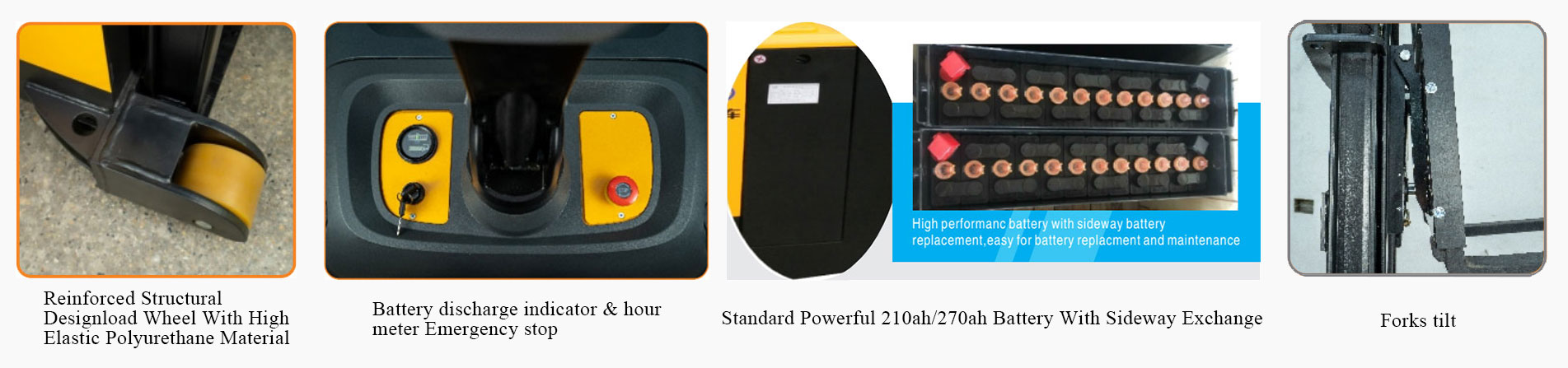

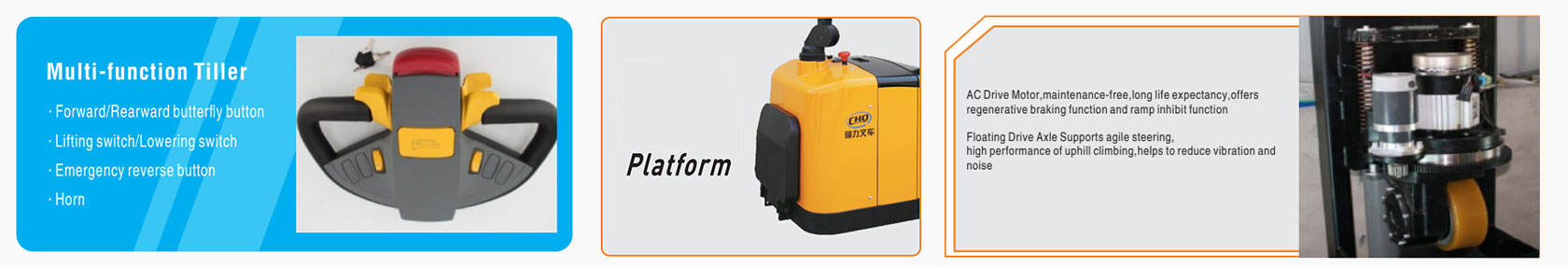

ADVANTAGES
1.The legless design and smaller turning radius are usedwidely
2.The modular design ensures fast delivery time and lowmaintenance to customers
3.H type Steel mast makes high strength and stability
4.Emergency reverse switch makes more satety andreliability during operation
5.AC drive system provides strong power and lowmaintenance cost
6.Multi-functional battery indicator
7.EPS system makes the vehicle steering flexible andconvenient
8.Built-in pressure relief valve protects the vehicleoverloads and increases operational safety
9.New type mast structure provides a wide operation view
10.Reliable hydraulic system increases work efficiency andsaves maintenance cost

0ption:
1.Adjustable lift speed.
2.Full free lifting.
3.Platform&prptection arm.
4.Forks tilting.
5.Side-shifter.

The legless balancedcounter electric stacker is the ultimate stacker for accessibility and efficiency, requiring no space between support legs or pallet loads, and virtually eliminating product damage.
The compact size of the QPA allows the operator to work in very narrow channel widths using this type of electric stacker.  More flexible than any other similar stacking mechanism on the market, does not reduce loading capacity when raise lift height.

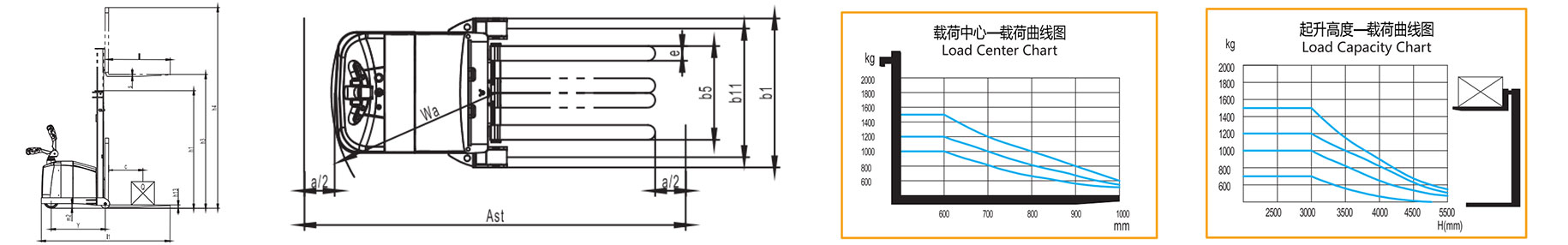

Model

QPA10/QPA12B/QPA15B

Drive Model

Electric

Operating

 Pedeatrain/Stand

Rated Capacity

Q(kg)

1000/1200/1500

Load Center Distance

c(mm)

600

Wheelbase

Y(mm)

935/1150/1320

Service weight(with battery)

kg

2100/2200/2300

Wheels

polyurethane wheel

Wheel dimension, front

mm

Φ250*75

Wheel dimension, rear

mm

Φ150*102

Wheel number, front/rear (x = driving wheel)

2x1

Thread, rear

b11(mm)

878

Max. Lift Height

h3

2500/3000/3500/4000/4500/5000/5500

Free Lift Height

mm

300

Height, Fork Lowered

h13(mm)

45

Ground clearance

m2(mm)

80

Extended Mast Height

h4(mm)

3650/4150/4650/5150/5650/6150/6650

Lowered Mast Height

h1(mm)

1830/2080/2330/2580/2080/2250/2420

Overall Length

/1(mm)

2300/2510/2680

Overall Width

b1(mm)

1020

Fork Dimension

S/e/l(mm)

35x100x1070

Aisle Width, with pallet 1000x1200 crosswise

Wa(mm)

2400/2610/2780

Aisle Width, with pallet 800x1200 lengthwise

Wa(mm)

2530/2740/2910

Turning Radius

mm/s

1140/1390/1590

Traveling Speed, full load/unload

mm/s

4-4

Lifting Speed, full load/unload

mm/s

90/120

Descending speed, full load/unload

mm/s

120/90

Max. Gradient, load/unload

%

510

Traveling Brake

Electromagnetic-regenerative braking

Driving Motor Power

kW

l.5

Lifting Motor Power

kW

2.2

Battery Voltage/Rated Capacity

V/Ah

24/210

Battery Weight

kg

190

Turing Mode

Electric steering

Noise level at operator's ear,according to DIN12053

dB(A)

<70
