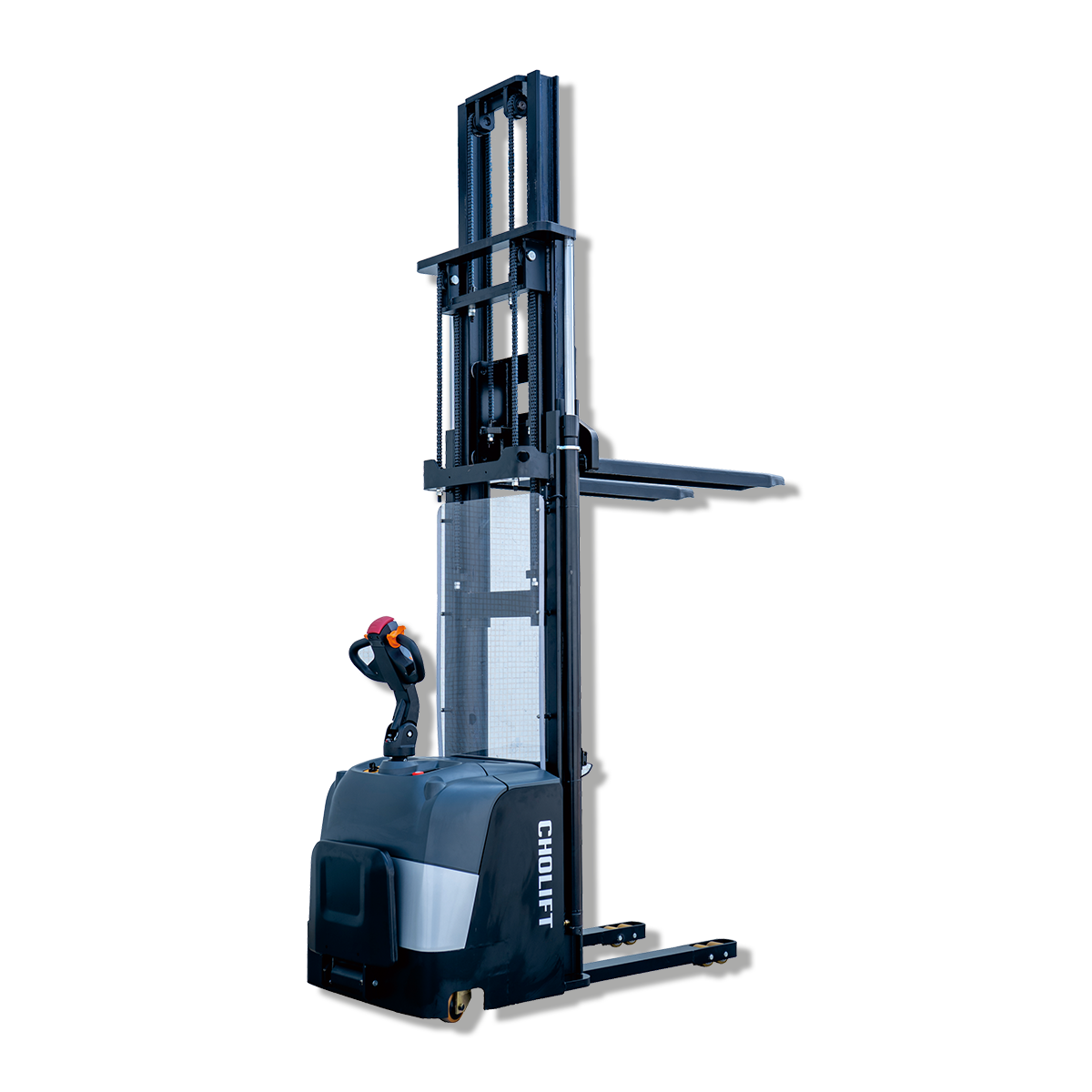

HIGH LIFT ELECTRIC STACKER

HIGH LIFT ELECTRIC STACKER

QDA D

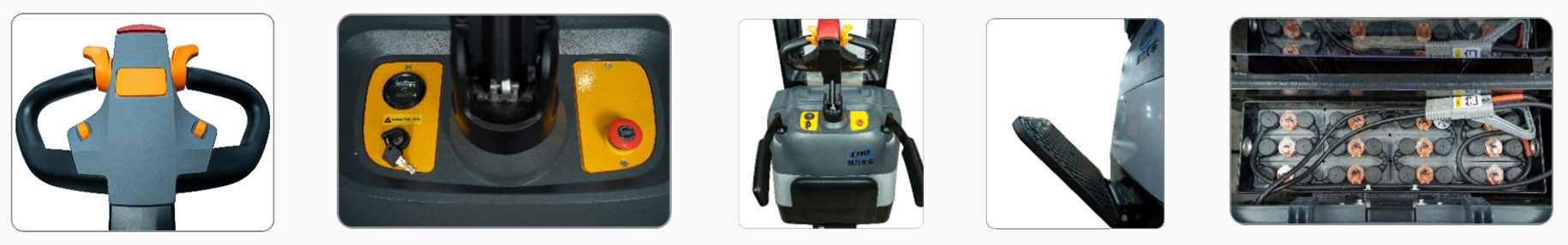

ADVANTAGES
1.CAN-Bus technology reducesmaintenance and increase overall performance
2.Low battery protection prolongs theusable life of battery
3.Automatic deceleration makes vehicleoperation more safe when turning
4.Low center of gravity ensures vehicleoperation more stable
5.Vertical drive provides smaller turningredius and convenient maintenance
6.H type Steel mast makes high strengthand stability
7.Emergency reverse switch makes moresatety and reliability during operationAC Motor reduces replacement of Carborbrush
8.Multi-functional battery indicator
9.EPS system makes the vehicle steeringflexible and convenient
10.Built-in pressure relief valve protects thevehicle overloads and increases operational safety
11.New type mast structure provides a wideoperation view
12.Reliable hydraulic system increases workefficiency and saves maintenance cost

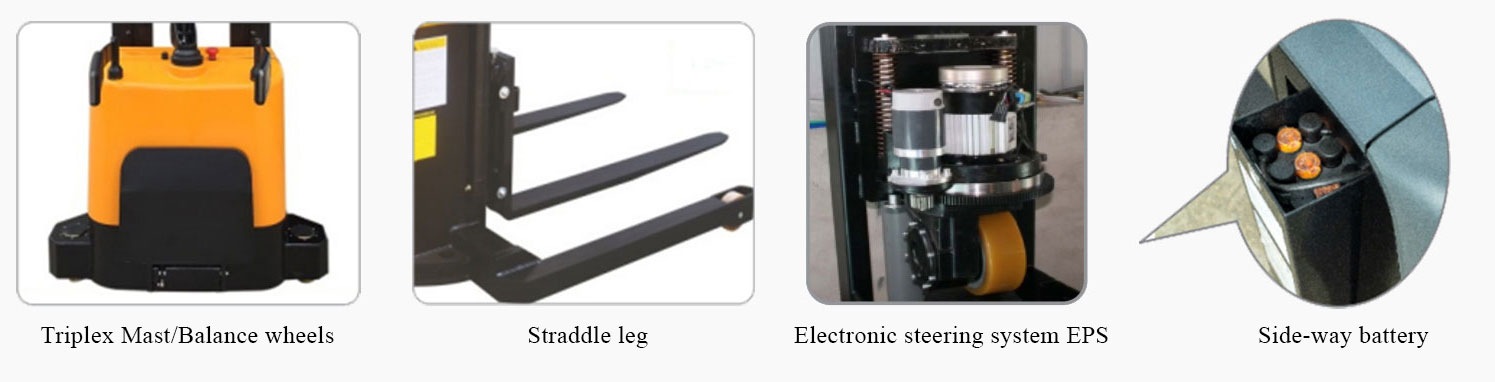

Option
Free-lift mast
Straddle leg


The vehicle has beautiful appearance, beautiful curve, optimized chassis structure design, so that the operation is more stable, and the steel plate stamping and injection molding process, strong and durable, high grade, meet the requirements of environmental protection. High quality H-type door frame alloy steel, rigidity is 25% higher than ordinary carbon steel, with high quality CURTIS electric control and CANBUS bus structure makes the whole machine communication more fast, reliable, efficient and stable

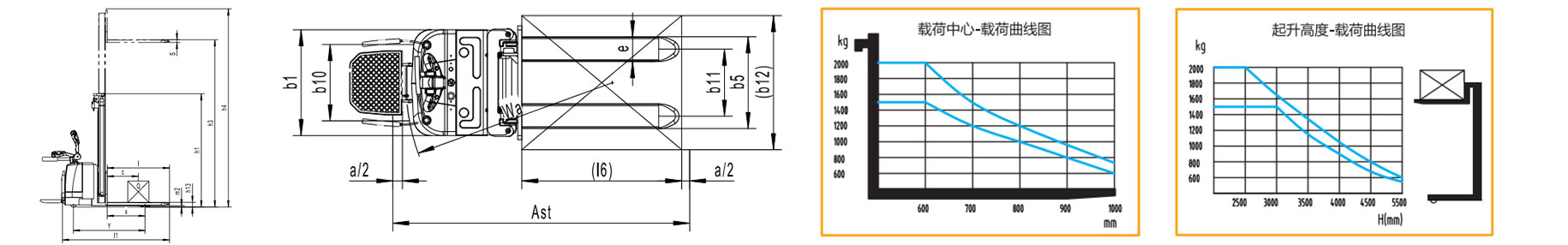

MODEL

CQD15/QDA20

Drive

Electric

Load capacity

Q ( kg )

1500/2000

Load centre

C(mm )

600

Wheelbase

Y(mm )

1330

weight With battery

kg

1050/1220/1185/1350

Wheel

Polyurethane

Wheel Size,Front Wheel

 mm

Φ250*75

Wheel Size,Rear Wheel

mm

Φ80*70

Additional Wheel

mm

Φ115*50

Thread,Rear

b11 ( mm )

410/525

 Lowered Mast Height

h1 ( mm )

2085/1765/2015/2165/2330/2000/2170/2340

Max. Lifting Height

h3 ( mm )

1600/2500/3000/3300/3500/4500/5000/5500

Extended Mast Height

h4( mm )

2085/3050/3550/3850/3950/5050/5550/6050

Lowered Fork Height

h13( mm)

90/95

Overall Length

/1( mm)

 2050

Overall Width

b1( mm)

790/1100

Fork dimensions

S/e/l( mm)

60/160/1150

Width over forks

bs( mm)

570/685

Ground Clearance, center of wheelbase

m2( mm)

30

Aisle Width, with pallet 1000x1200 crosswise

Ast( mm)

 2455

Aisle Width, with pallet 800x1200 lengthwise

Ast( mm)

2430

Turning Radius

Wa(mm)

 1600

Max. Gradient Performance, laden/unladen

%

8/10

Service Brake

Electromagnetic-regenerative braking

Drive motor power

Kw

1.2/1.5

Lifiting motor power

Kw

 2.2/3.0

Battery Voltage I nominal capacity

V/Ah

24/210/270

Steering

Electric steering
