简体中文PLATFORM ELECTRIC STACKER
QDA EM
.png "PLATFORM ELECTRIC STACKER")
 |
||

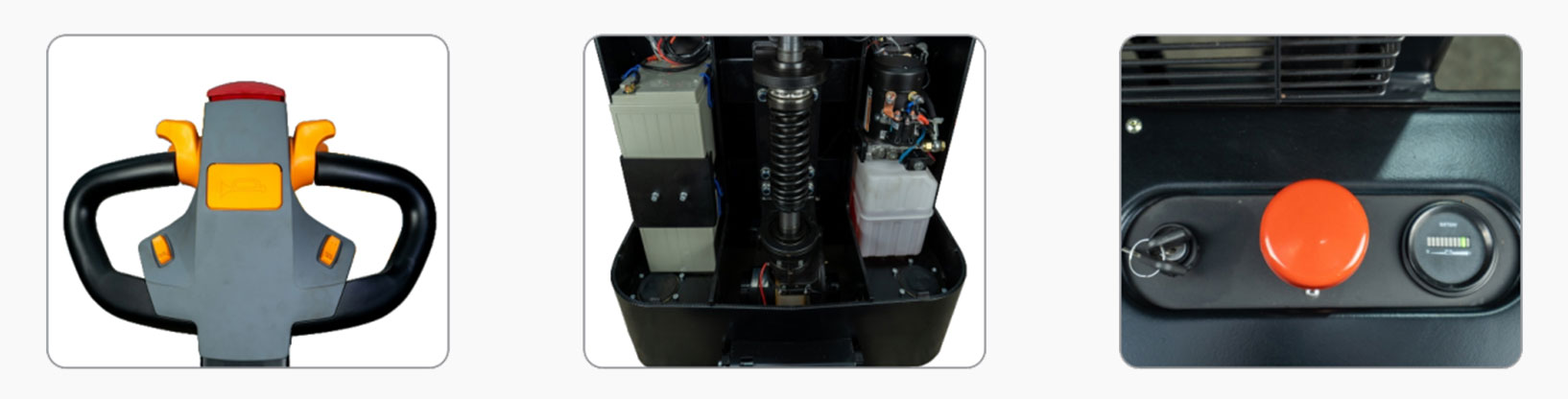

| Multi-functional Tiller The ergonomic tiller helps to be easily operated with hands,belly-buttonmakes more safety |
Battery discharge indicator and emergencybutton function for higher battery servicelife | Interior structure Maintennce battery Floating mechanism Built-in charger |
ADVANTAGES
High efficiency
1.Floating drive mechanism,suitable for travelling on rough ground
2.Ergonomically designed tiller allows confortable and efficient operation
3.Advanced control system reduces failure rate,increasing work effciency
High Stability
3.Advanced control system reduces failure rate,increasing work effciency
High Stability
1.Low battery protection prolongs the usable life of battery
2.Low center of gravity ensures vehicle operation more stable
2.Low center of gravity ensures vehicle operation more stable
3.Reliable hydraulic system ensures smooth stacking shelves with goods
4.Robust chassis reinforcement for long service life
4.Robust chassis reinforcement for long service life
High Safety
1.Emergency switch to apply the brake and cutt off drive power when handle is released
2.Belly-button safety guard and switch to prevent the operator from beingaccidentally pinned against a wall or obstruction when the vehicle is driven forward
3.All controls automatically return to'OFF"when released
4.Both overload by-pass valve and makes more safety when the forks is raisedabove the pre-set requirement.
Easy maintenance
1.Maintenance-free batteries reduces operator daily check procedures
2.Battery indicator automatically display battery discharge status and remindworkers to charge the battery in time.
2.Battery indicator automatically display battery discharge status and remindworkers to charge the battery in time.
1.The middle floating drive can adapt to driving on uneven roads.
2.The balance wheels at both sides are supported with high safety and stability.
2.The balance wheels at both sides are supported with high safety and stability.
3.More light steering, smaller turning radius, new driving comfort.
4.Curtis electric control has overheating self protection function;Fault detection and parameter setting port.
5.Maintenance free battery, optional with built-in charger or lithium battery.
6.Conform to national CE safety standards.
6.Conform to national CE safety standards.
7.Station plate driving mode; Arm protection is optional.
8.The ground speed is controlled steplessly.
8.The ground speed is controlled steplessly.
The newly designed floating suspension system makes the steering operation more flexible and convenient, and adopts the design of 5 fulcrum and low center of gravity. The frame is a high-strength steel frame structure, which has a large residual load capacity and long service life. The emergency reverse button on the head of the handle can effectively avoid the driver being injured in the event of an emergency when driving backwards
|
Model |
CQD12EM |
CQD15EM |
|
Drive |
Electric |
|
|
Operator type |
Standing (with arm guards) |
|
|
Load capacity/rated load |
1200/1500 |
|
|
Load centre distance |
Q(kg) |
500 |
|
Lift height |
C(mm) |
1600/2000/2500/3000/3300/3500 |
|
Lowered mast height |
h3(mm) |
2090/1590/1840/2090/2240/2340 |
|
Extended mast height |
h1 ( mm) |
2090/2560/3060/3560/3860/4060 |
|
Lowered fork height |
h4 ( mm) |
90 |
|
Fork dimensions |
h13(mm) |
60/142/1070 |
|
Width over forks |
s/e/l(mm) |
550/660 |
|
Turning radius |
b5(mm) |
1470(fold）/1880 |
|
Wheel |
Wa(mm) |
1225 |
|
Tyres |
Y(mm) |
Polyurethane |
|
Wheel Size，Front Wheel |
mm |
Φ80x70 |
|
Wheel Size，Rear Wheel |
mm |
Φ210x70 |
|
Additional Wheel |
mm |
Φ115x56 |
|
Ground clearance |
mm |
50 |
|
Tread,front |
m2(mm) |
428/538 |
|
Tread,rear |
b10(mm) |
585 |
|
1000x1200 Crosswise |
b11(mm) |
2315 |
|
800x1200 Lengthwise |
Ast(mm) |
2265 |
|
Travel speed,laden/unladen |
Ast(mm) |
3.5/3.5 |
|
Lift speed,laden/unladen |
km/h |
85/120/80/120 |
|
Max gradient performance,laden/unladen |
mm/s |
4-6/3-6 |
|
Overall Length |
% |
1770(fold）>/2180 |
|
Overall Width |
l1 (mm) |
790 |
|
Service brake |
b1(mm) |
Electric brake |
|
Battery voltage/nominal capacity |
|
24V/75 |
|
Manufacturer of drive control |
V/Ah |
CURTIS |
|
Drive motor |
|
0.75 |
|
Lift motor |
kw |
2.2 |
|
Service weight(with battery) |
kw |
600 |
|
Steering |
kg |
Mechanical steering |
