Scissor Electric Stacker

Scissor Electric Stacker

CQD15



ADVANTAGES
1.AC motor, no need to replace carbon brush
2.Electric steering system, flexible and convenient operation
3.Multifunctional electricity meter, reminding charging in time
4.The fork telescopes stably without impact
5.Emergency power off button and reverse switch
6.Proportion rise and fall, improve precise control
7.Low voltage protection, extending service life
8.CAN-BUS harness improves system operation stability
9.AC drive system
10.Electric power steering
11.Pantograpgh reach
12.Proportional controls
13.CAN-BUS technology
14.Emergency stop & reversing

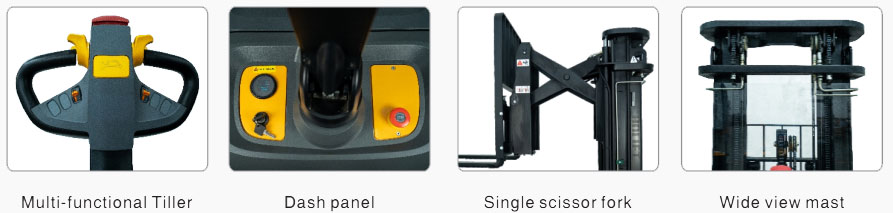

15.Multi-functional tiller
16.Battery discharge indicator

High efficiency High Stability
CAN-Bus technology reduces maintenance and increasestability Proportional lift gives precise positioning of goods
Control system reduces failure rate,increasing work efficiency Fork carriage is an integrated welded unit and fully rollered toensure smooth, durable, long last performance.
High Safety Easy maintenance
Emergency button switch makes more satety and reliability during operation AC Motor reduces replacement of Carbon brush
New design of mast structure provides a wide operation view Pantopraph reach makes easy storage in deeper area
Regenerative braking extends battery working time


With steering system and shear forward function, simple and reliable operation, easy to use in narrow space. Large capacity battery to improve vehicle usage time, and ergonomically designed handle allows users to use positive and negative switches to control accurate operation, convenient up and down function left and right operation

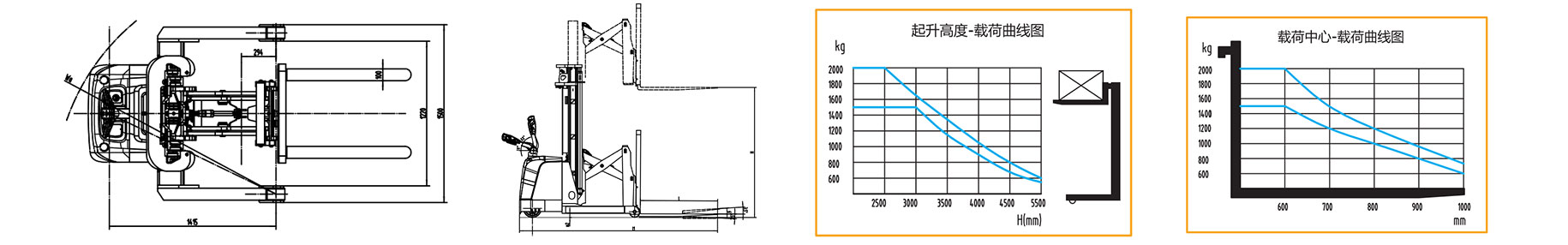

MODEL

CQD15

Drive

Electric

Operator type

walking

Load capacity

Q ( kg )

1500

Load centre

C(mm )

600

Wheelbase

Y(mm )

1415

Service weight

kg

2600

Tyres

Polyurethane Wheel/PU

Drive wheel

Φxw( mm )

Φ210*70

Loading wheel

Φxw( mm )

Φ130*105



b10 ( mm )

1200

Forks tilt

α/β(°)

3.5/2.5

Lowered height of mast

h1( mm )



Free lifting height

h2( mm)



Max.lifting height

h3( mm)

4500

Lowered height of forks

h13( mm)

45

Loverall length

l1( mm)

2140

Overall width

b1( mm)

1500

Fork dimension

b5



Max.overall width of two forks

l4( mm)

815

Reach distance

m2(mm)



Ground clearance

Ast( mm)

56

Aisle width.800x1200 Lengthwise

Wa(mm)

2200

Turning radius

l7( mm)

1460

Overall length(without forks)

km/h



Travel speed.laden/unladen

mm/s

3.5/4

Lift speed.laden/unladen

mm/s



Lowering speed.laden/unladen

mm/s



Reach speed. .laden/unladen

mm/s



Max gradient.laden/unladen

%



Service brake

Electromagnetic brake(E/M)

Drive motor

KW

3

Lift motor

KW

4.5

Lithium tattery voltage/Capacity

V/Ah

24V/210Ah

Noise level.according to Din12053

dB ( A )

<70
